Central feeding system

Name:Central feeding system

Details

advantage
1. Each unit is equipped with a large-capacity central tower, with transport skein, and each tower can be discharged separately.
2. Feed to the tower between each two houses by the winch.
3. Automatic control between the house and the house.

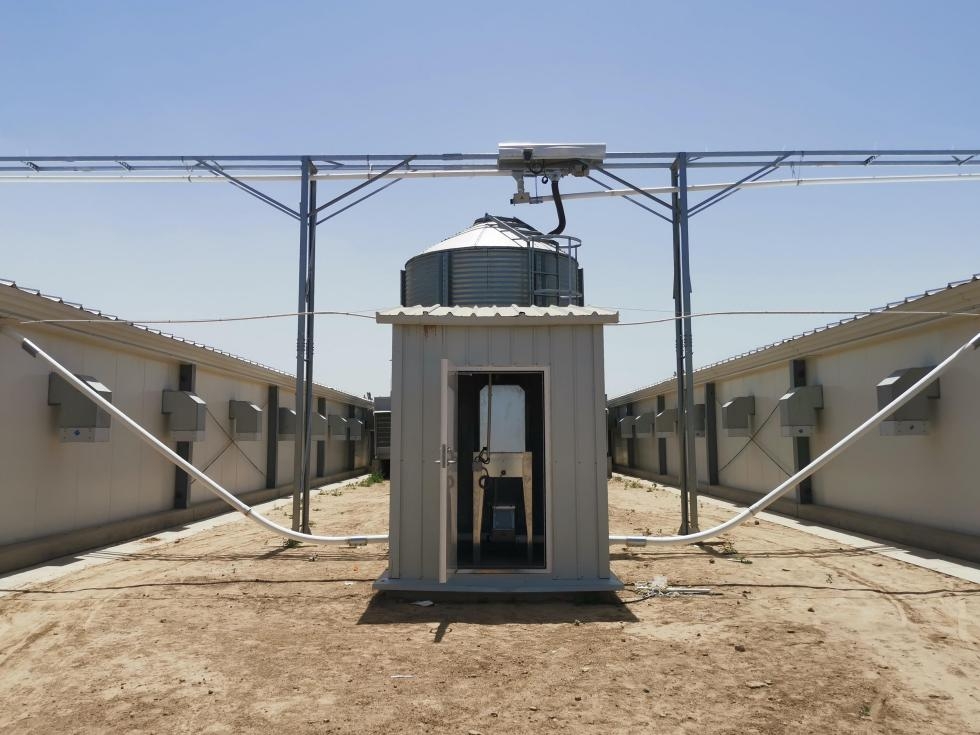

4. Each two houses is equipped with a distribution tower, and each distribution tower is used to feed the batch, which can realize the quantitative feeding system of the material box in the house.
5. Skip car can not enter the factory, which is conducive to epidemic prevention and good biological security.

Material system advantage

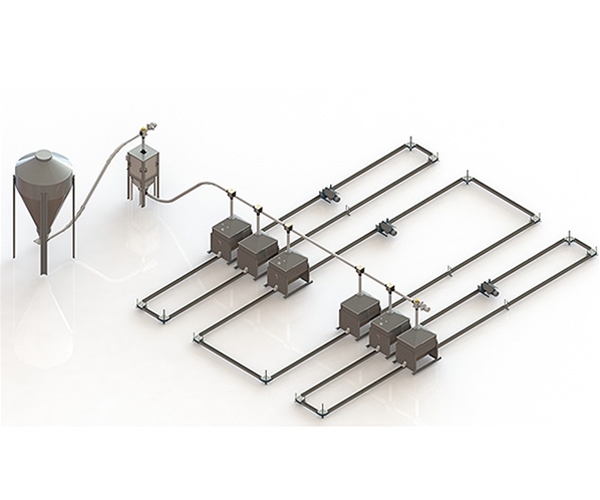

The electronic batch weighing system for aquaculture is connected with the feeding system of the plant area, which can realize the remote conveying and feeding from the central tower of the plant area to the daily tower to the material box in the house.
Control system: touch screen +PLC programming system.
Feed valve: pneumatic switch valve, quick switch.
Weighing: Ensure accurate supply, improve feeding indicators, and bring greater benefits.

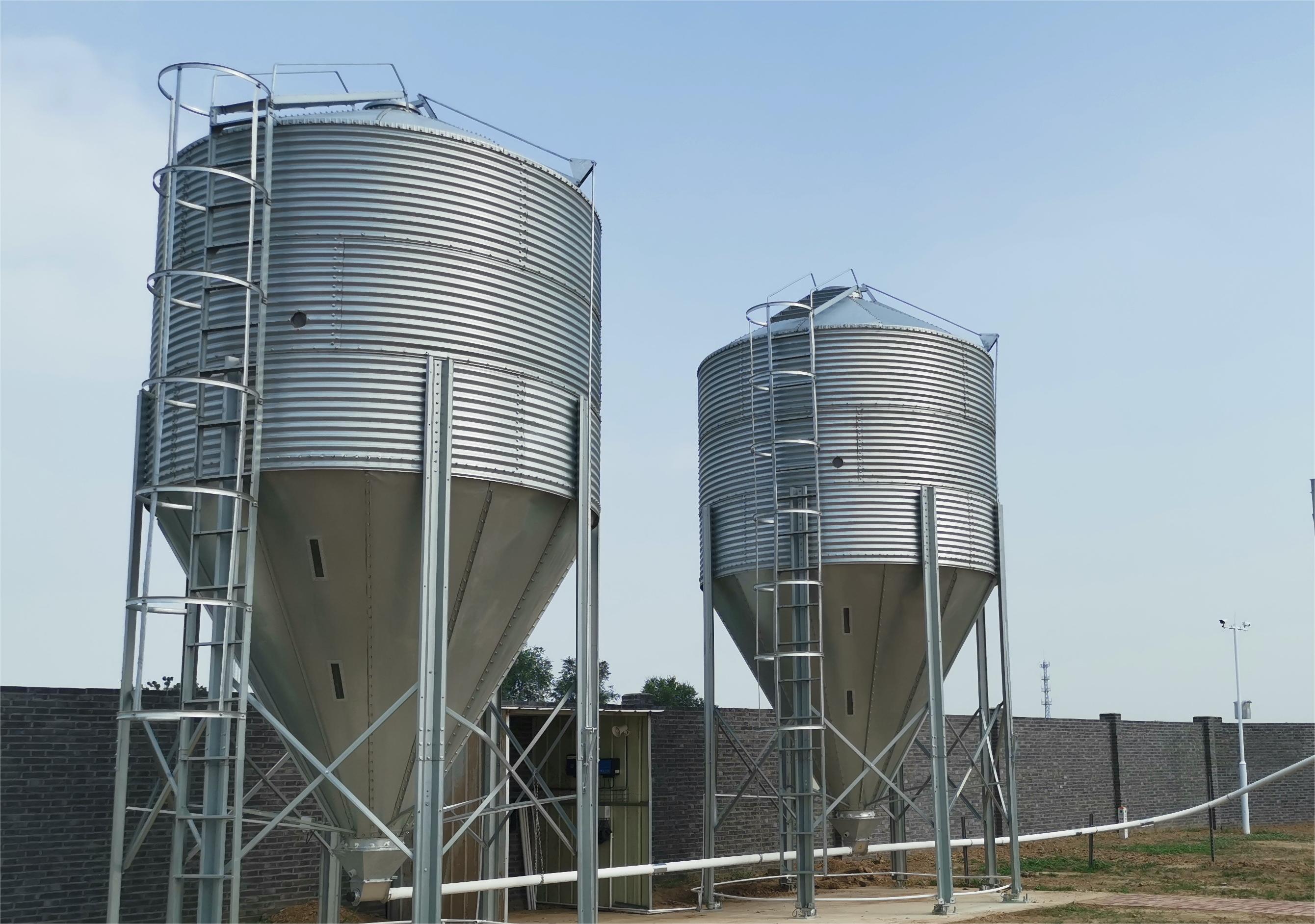

>Silo

Feed silo capacity range: 1.6T~33.4T.

The silo body is 275g galvanized steel plate splicing

Lower cone angle :60 degrees

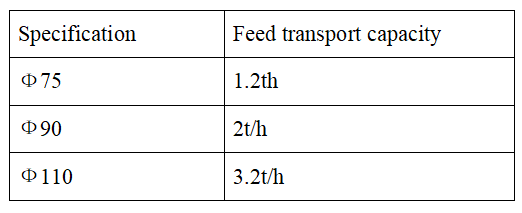

>Feed transport


>Batch weighing

The breeding electronic batch weighing system is connected with the farm central feeding system

lt can realize the realize central silo--daily silo--inside feed box conveying and accurate feeding in one day

Higher accuracy: weighing error <=1‰ , inside feed box error <=1‰

Accurate weighing: Ensure accurate feed supply, improve feeding indicators, and bring maximum benefits

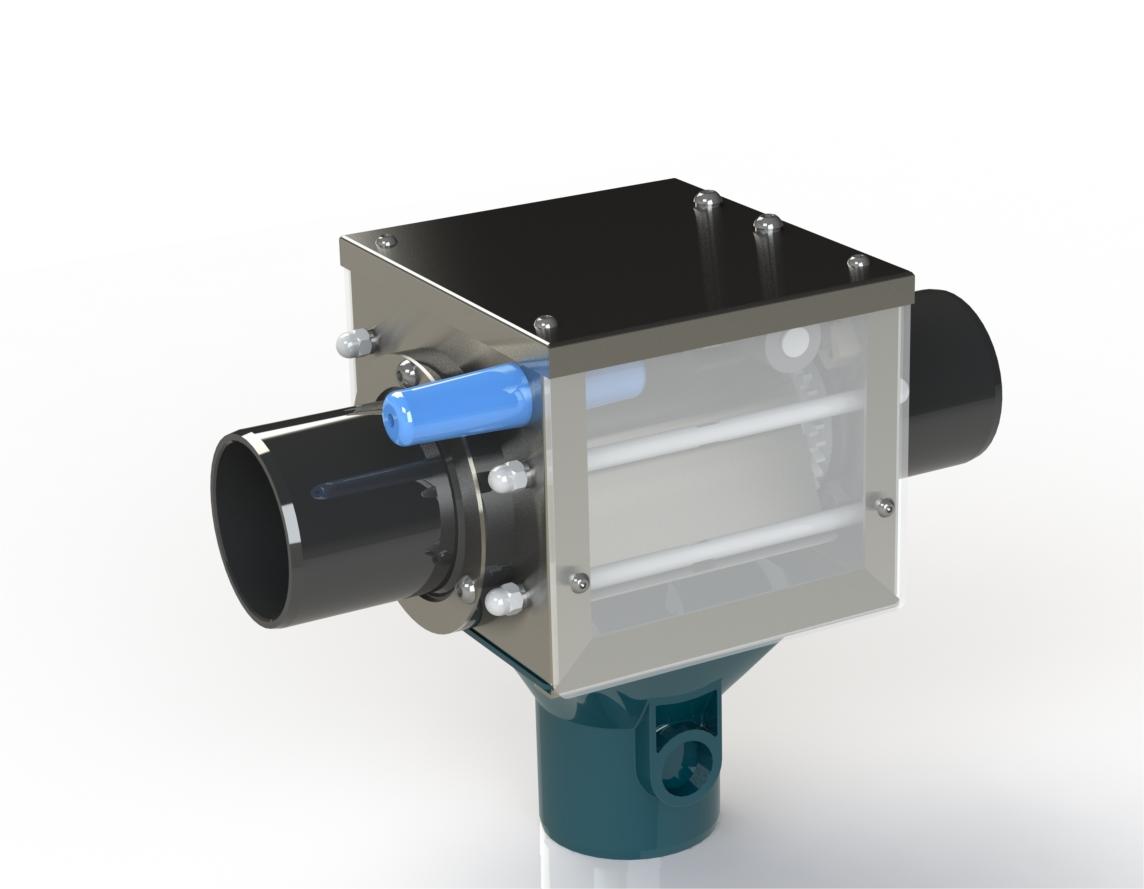

>Electric feed falling valve

The product material is SUS304, which has good anti-corrosion effect and long service life

The falling is a rotating structure, which effectively eliminates the feed transport error caused by feed accumulation and improves the accuracy

The position of the falling switch is provided with a feedback mechanism to deary understand the falling situation

Dc drive, more safe and efficient

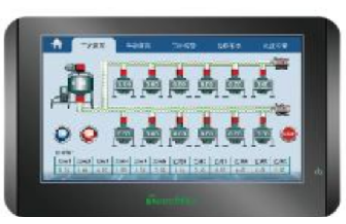

>Control unit

Control system: touch screen +PLC programming system
